US Navy 9-Inch Dahlgren of USS Hartford in Petosky, Michigan
US Navy 9-Inch Dahlgren Number 249 is displayed in Petosky, Michigan. US Navy Bureau of Ordnance records show that Number 249 served aboard USS Hartford from her commissioning in 1859 through the 1880s. Number 249 was cast at Cyrus Alger & Co. in 1859 and weighed 9,085 pounds. It is displayed on an original, post-war iron carriage.
US Navy 9-Inch Dahlgren of USS Hartford in Gaylord, Michigan
US Navy 9-Inch Dahlgren Number 250 of USS Hartford is displayed in Gaylord, Michigan beside the Ostego County Courthouse. It served aboard USS Hartford from the ship’s commissioning in 1859 through the 1880s. It was cast by Cyrus Alger & Company in 1858. As manufactured it weighed 9,035 pounds. It is displayed on an original, post-war US Navy iron carriage. It is one of three 9-Inch Dahlgrens from USS Hartford displayed in northern Michigan, and one of eight associated with the ship to survive.
US Navy 9-Inch Dahlgren of USS Brooklyn in Oakland, New Jersey
A US Navy 9-Inch Dahlgren and a US Navy 8-Inch Shell Gun of 6,500 Pounds are displayed at Veterans Park in Oakland, New Jersey. Many thanks to friend of the page Parmesan Chee for sharing these photos!
The two guns are:
US Navy 9-Inch Dahlgren Number 1162 which was manufactured by Fort Pitt Foundry in 1864. It served upon the veteran steam sloop Brooklyn from August of 1870 to July of 1876.
US Navy 8-Inch Shell Gun of 6,500 Pounds Number 172 which was manufactured at Cyrus Alger & Company in 1866. As manufactured it weighed 6,460 pounds.
US Navy 9-Inch Dahlgren of USS Hartford in Cheboygan, Michigan
US Navy 9-Inch Dahlgren Number 225 is displayed in front of the Cheboygan County Courthouse in Cheboygan, Michigan. It served aboard USS Hartford from the ship’s commissioning in 1859 through the 1880s. It was cast by Cyrus Alger & Company in 1858. As manufactured it weighed 9,035 pounds. It is displayed on an original, post-war US Navy iron carriage. It is one of three 9-Inch Dahlgrens from USS Hartford displayed in northern Michigan, and one of eight associated with the ship to survive.
US Navy 9-Inch Dahlgren Number 933 of USS Nipsic
US Navy 9-Inch Dahlgren Number 933 is part of a memorial to Admiral David Farragut in Farragut, Tennessee. As manufactured in 1864 it weighed 9,170 pounds. US Navy Bureau of Ordnance Records show that it was carried aboard the second USS Nipsic from her commissioning in 1879 until at least 1890. This may mean that Number 933 is the only US Navy heavy gun to survive from the squadron that was wrecked at Samoa in March of 1889.
US Navy 9-Inch Dahlgren Number 229 of USS Hartford in Vallejo, California
Many thanks to Rob of the YouTube Channel Firearms Addict for taking these photos!
US Navy 9-Inch Dahlgren Number 229 was cast at Cyrus Alger and Company in 1858. It weighed 9,070 pounds as manufactured. According to US Navy records, it was placed aboard USS Hartford in 1859. It served with Hartford until 1887 when it was removed at Mare Island. It is displayed nearby in Independence Park on the waterfront in Vallejo, California.
US Navy 9-Inch Dahlgren Number 228 of USS Hartford at Mare Island
Many thanks to Rob of the YouTube Channel Firearms Addict for taking these photos at Alden Park!
US Navy 9-Inch Dahlgren Number 228 was cast at Cyrus Alger and Company in 1858. It weighed 9,045 pounds as manufactured. According to US Navy records, it was placed aboard USS Hartford in 1859. It served with Hartford until 1887 when it was removed at Mare Island. It remains at Mare Island and is displayed there in Alden Park.
The Historic Naval Cannons of Glen Island Park, New Rochelle, New York
Five historic cannons are displayed at Glen Island Park in New Rochelle, New York. Many thanks to friend of the page James Touza for sending these photos!
Glen Island Park, a park of Westchester, New York, was originally a resort developed by John H. Starin. The cannons and stone "castles" were part of the whimsical scenery of the resort.
US Navy 9-Inch Dahlgren at NSWC Dahlgren
US Navy 9-Inch Dahglren Number 1006 is displayed at Naval Surface Warfare Center Dahlgren Division. These photos were taken by Haze Grey History in 2023. Many thanks for the permission to share them here. Number 1006 served aboard USS Brooklyn in the 1870s.
The cut down Dahlgrens of Lee Hall
Two US Navy Dahlgren guns which were both eventually transferred to “Yards and Docks” are seen at Lee Hall in Newport News, Virginia. Photographs are by Haze Grey History - many thanks for the permission to use them! As is visible in the photos, a large portion of the chase of both guns has been removed. They are displayed beside a portable navy boiler.
The two guns are an 9-Inch Dahlgren cast in 1859 and a 8-Inch Bureau of Ordnance Shell Gun cast in 1867.
US Navy 9-Inch Dahlgren Number 451 of USS Wabash and USS Worcester
US Navy 9-Inch Dahlgren Number 451 is seen at the National Civil War Naval Museum. Number 451 was manufactured by West Point Foundry in 1862. In July of 1862 USS Wabash exchanged her spar deck battery of fourteen 8-Inch shell guns of 63cwt for a like number of 9-Inch Dahlgrens (Numbers 444 to 453 and 602-605). This brought her total battery to a total of forty-two 9-Inch Dahglrens and two 10-Inch Dahglrens (one of which would later be replaced by a 150-Pounder Parrott). Following the war, Number 451 was removed from Wabash. In December of 1871 it was mounted on USS Worcester upon which it served until 1877 when it was removed at Norfolk following Worcester's decommissioning.
US Navy 9-Inch Dahlgren Number 887 of USS Enterprise
US Navy 9-Inch Dahlgren Number 887 is displayed at Trophy Park at Norfolk Naval Shipyard. It was cast at Cyrus Alger and Company in 1864. As manufactured it weighed 9,329 pounds. It served aboard USS Tennessee and USS Enterprise.
US Navy 9-Inch Dahlgren Number 852 of USS Minnesota
One of five US Navy 9-Inch Dahlgrens on display at the National Civil War Naval Museum in Columbus, Georgia is Number 852. Records show that it served aboard the frigate USS Minnesota from at least 1875.
US Navy 9-Inch Dahlgren Number 242 at Trophy Park
US Navy 9-Inch Dahlgren Number 242 was manufactured by Cyrus Alger & Company in 1859. As manufactured it weighed 9,045 pounds. It served aboard USS Richmond from her commissioning until 1865. During this time it was fired 250 times. USS Richmond, of course, saw a very active career including at New Orleans, Vicksburg, and Mobile Bay. After 1872, it was mounted aboard USS Sabine.
US Navy 9-Inch Dahlgren Number 34 of USS Wabash
US Navy 9-Inch Dahlgren Number 34 is one of five 9-Inch Dahlgrens displayed at the National Civil War Naval Museum in Columbus, Georgia. It was cast at Tredegar Foundry in Richmond, Virginia in 1855. Records indicate that it served aboard USS Wabash.
9-Inch Dahlgren Number 45 of USS Wabash at the National Civil War Naval Museum
US Navy 9-Inch Dahlgren Number 45 was cast at Tredegar Foundry in 1855. Among the earliest surviving Dahlgrens, it has two closely placed hammer mounting blocks which are oriented to a single vent. The research of Olmstead, Stark, and Tucker show that it was carried aboard the steam frigate USS Wabash.
The Wreck of USS Huron and 9-Inch Dahlgren Number 1178
Displayed at Trophy Park at Norfolk Naval Shipyard is US Navy 9-Inch Dahlgren Number 1178. Number 1178 was cast in 1864 at Fort Pitt Foundry. It is one of the last of the type to have been manufactured. (The series of registry numbers ran to 1185.) According to the research of Wayne Stark. Number 1178 was recovered from the wreck of USS Huron.
US Navy 9-Inch Dahlgren in Downtown Vicksburg
A US Navy 9-Inch Dahlgren is displayed in downtown Vicksburg, Mississippi. I was not able to read the registry number or the weight on the breech of the cannon. I have been told by a friend of the Facebook page that it is one of the two in Vicksburg which was originally carried aboard USS Tuscumbia and later used by the US Army’s 17th Corps.
9-Inch “Confederate Dahlgren” at Vicksburg
A 9-Inch Naval Shell Gun cast at Bellona Foundry in 1862 is displayed behind the Mississippi Monument at Vicksburg. This shell gun generally follows the shape of US Navy 9-Inch Dahlgrens and may be called a “Confederate Dahlgren.”

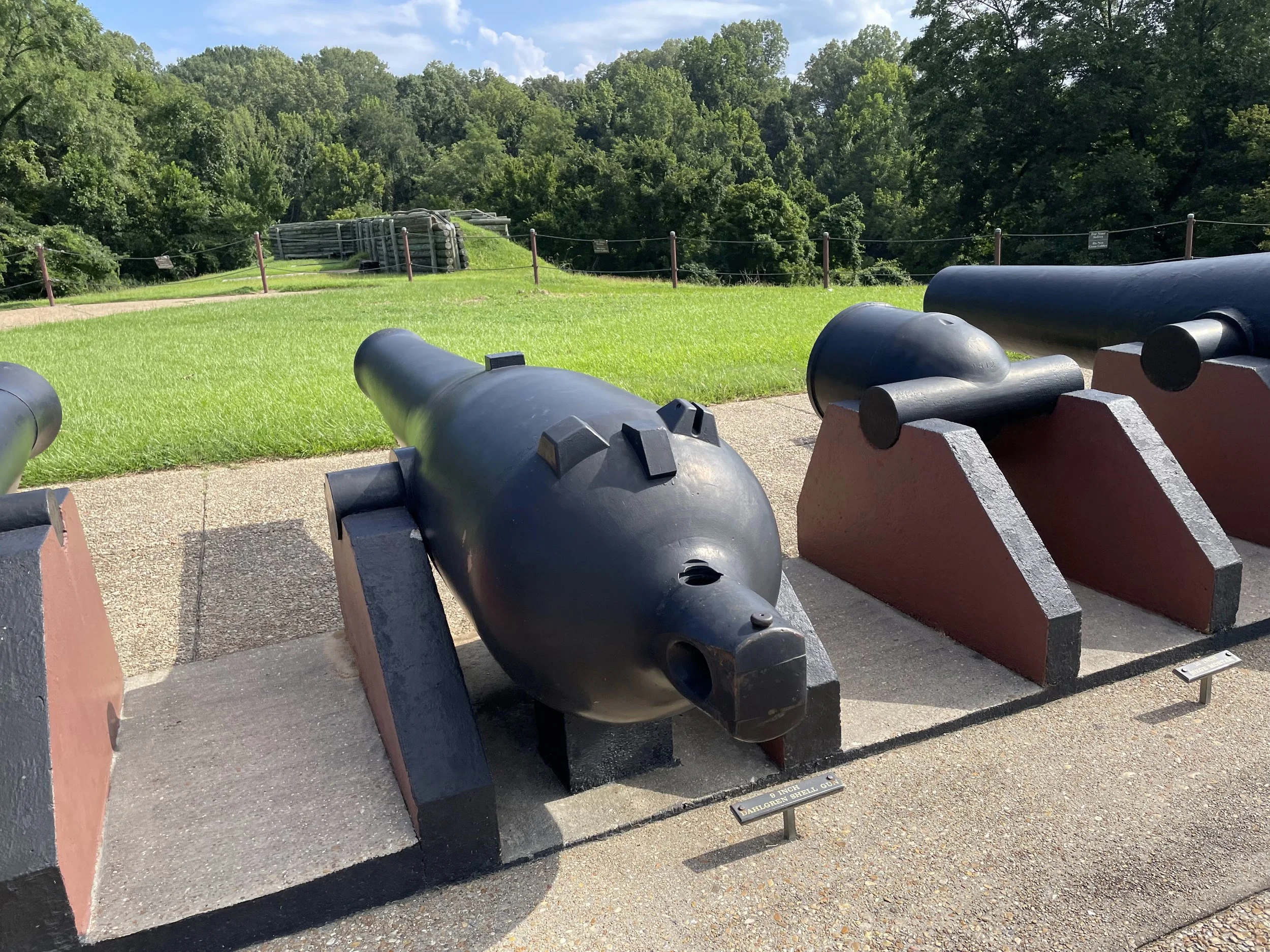

US Navy 9-Inch Dahlgren 703 at Vicksburg
US Navy 9-Inch Dahlgren Number 703 was cast at Fort Pitt Foundry in 1863. It is currently displayed at Vicksburg National Military Park, but in 1864 it was one of twenty 9-Inch Dahlgrens sent to the Navy Yard at Sackets Harbor, New York. It weighs 9,265 pounds.
